Introduction to the Structure and Functionality of Electric Tailgate Support Rods

1. Overview

Electric tailgate support rods are common components in modern vehicles, primarily designed to facilitate the automatic opening and closing of tailgates, providing users with convenience and comfort. Their design involves various materials and components, each playing a crucial role in the overall structure. This article delves into the material composition and the functionalities of each component of electric tailgate lift support rods.

2. Basic Materials

1. Metal Materials

• Aluminum Alloy: Widely used for the support rod body due to its lightweight and high-strength properties. Aluminum alloy not only reduces overall weight but also enhances corrosion resistance, extending the product's lifespan.

• Steel: High-strength steel is employed in certain high-load applications to increase load-bearing capacity and compressive strength.

2. Plastic Materials

• Engineering Plastics: Materials such as polycarbonate (PC) and polyoxymethylene (POM) are commonly used for the electric motor casing and control components. These materials exhibit excellent wear and heat resistance, contributing to the overall stability of the components.

3. Rubber Materials

• Damping Pads: Utilized for shock absorption and protection, these pads minimize noise and vibration during the opening and closing of the tailgate, enhancing user experience.

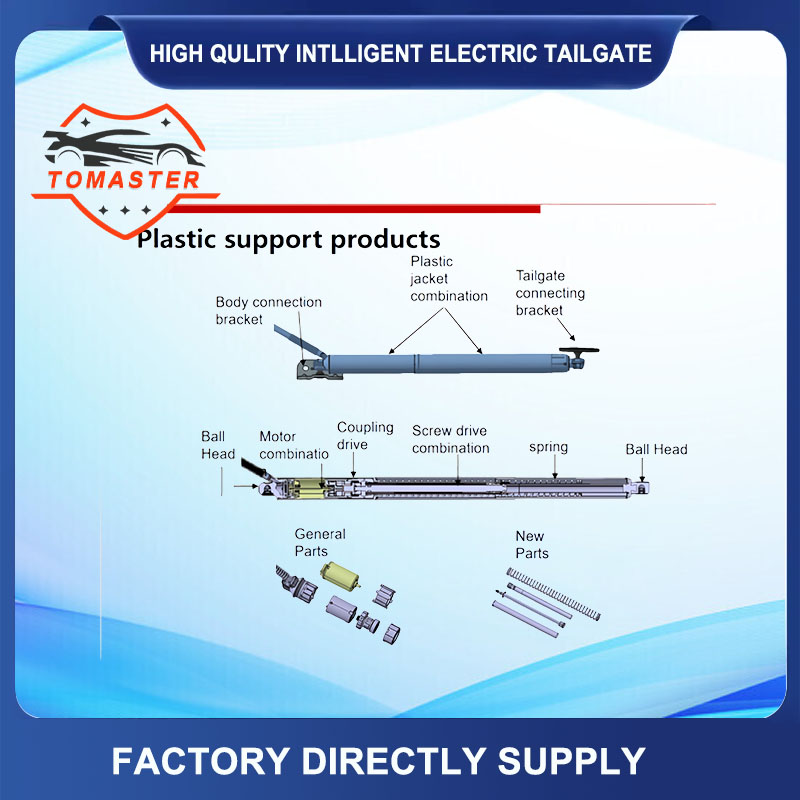

3. Main Components and Their Functions

1. Electric Motor

• Function: The electric motor serves as the core component of the electric tailgate kit support rod, driving the extension and retraction of the rod. Typically a DC motor, it provides rapid response to control signals for efficient tailgate operation.

2. Support Rod Body

• Function: The support rod body provides mechanical support, helping to stabilize the tailgate during opening and closing. Its design usually incorporates a gas spring structure, automatically adjusting support force based on load to ensure smooth tailgate operation.

3. Controller

• Function: The controller receives driver commands and translates them into operational signals for the electric motor. It controls the motor's speed and direction for precise tailgate management.

4. Sensors

• Function: Sensors monitor the status of the tailgate, ensuring real-time feedback during the opening and closing process. For example, position sensors detect the tailgate angle, ensuring it stops at the appropriate position to prevent injury.

5. Connection Devices

• Function: Connection devices include brackets and hinges, which securely attach the support rod to the vehicle's body and tailgate. These components must exhibit high strength and corrosion resistance for long-term stability.

6. Power Supply System

• Function: The power supply system provides electricity to the electric motor, typically sourced from the vehicle's battery. It should include overload protection to prevent damage to the motor under high loads.

7. Switch

• Function: The switch is used for manual control of the tailgate's opening and closing, often positioned within the cabin or on the tailgate itself for driver convenience.

4. Working Principle

The operation of electric tailgate support rods is based on the motor's drive mechanism. When a user issues a command via a button or remote control, the controller activates the electric motor, which drives the support rod to extend or retract, thus opening or closing the tailgate. During this process, sensors continuously monitor the tailgate's movement to ensure it halts in a safe position.

5. Advantages and Applications

1. Convenience
   electric tailgate actuator support rods allow drivers to easily open the tailgate even when their hands are full, significantly enhancing usability.

2. Safety
   With built-in sensors, the system can prevent the tailgate from closing on people or objects, increasing safety features.

3. Intelligent Control
   Some high-end vehicles feature electric tailgate support rods with smart controls that can integrate with the vehicle's systems for automated sensor-based opening.

4. Broad Applications
   Electric tailgate support rods are not only utilized in passenger cars and SUVs but also in commercial vehicles such as vans and delivery trucks, making them a vital element of modern vehicle design.

6. Future Development Trends

In the future, the development of electric tailgate support rods will likely trend toward greater intelligence and lightweight construction. In terms of intelligence, features may include remote control via mobile apps and deeper integration with vehicle smart systems. Lightweight design through the use of innovative materials and structural optimization will also be a significant focus to enhance overall performance and range.

7. Conclusion

Electric tailgate support rods, with their convenience and safety features, are increasingly becoming indispensable components in modern vehicles. Understanding their material structure and component functions provides valuable insight into the importance of this device in automotive design and its future potential for development. As technology continues to evolve, the functionalities and applications of electric tailgate support rods are set to expand, offering users an enhanced driving experience.
